Description

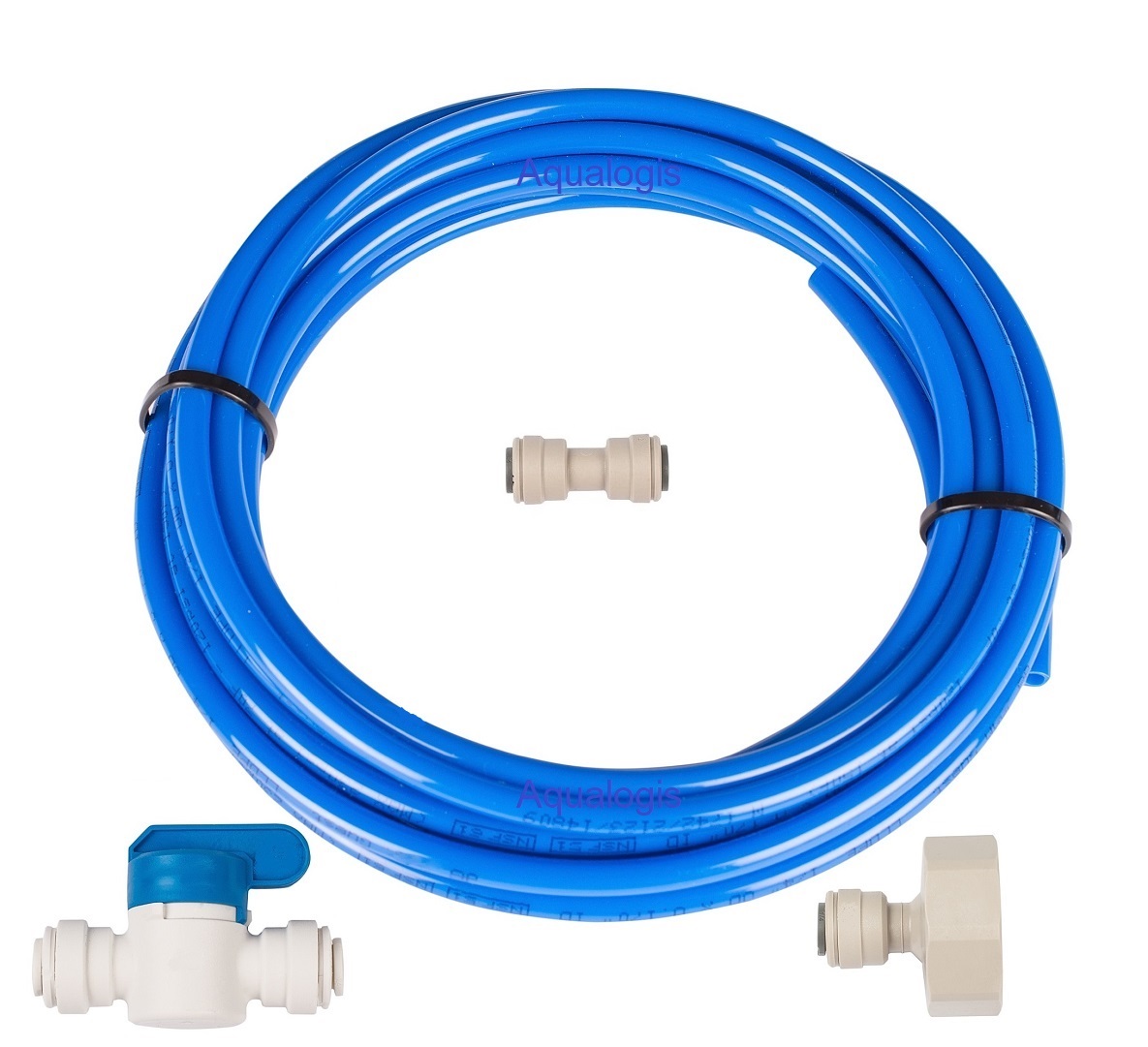

Water Connection Set for Refrigerator with Ice Maker
Included
- White Hose – John Guest 1/4 5m
- Coupling Reducer – John Guest 3/4 BSP x 1/4 PF
- Straight Coupling – John Guest 1/4
- Coupling Ball Valve – John Guest 1/4
Water hose – John Guest 1/4″ 5m
The John Guest hose guarantees reliability and longevity through pressure attestation, giving users peace of mind and avoiding unforeseen failures. Its high quality means that it will not break after a few months of use, a common problem with cheaper products on the market.
Product features:
- Pressure tested, ideal for fridges with a cube maker and water dispenser, as well as pressurised coffee machines with a water connection.
- Has the reassurance that it will not break after a few months, unlike cheap hoses available on the market.
- Purchasing more than 1 metre ensures that you receive the hose in one piece.
Product information:
- Manufacturer: John Guest
- Model: 1/4″ hose
- Operating temperature: min 0.6°C / max 65°C
- Operating pressure: max 230 psi
- Dimensions: Outer diameter: 6.35mm, Inner diameter: 4.3mmi
Important information:
The use of hoses without pressure approval can lead to flooding of the kitchen, damage to the appliance and damage to the floor or other areas.
Fits models:
- Refrigerators: side by side, multidoor, french door
- Coffee makers
- Connection to water filters
- Reverse osmosis systems
- Water distributors
- Aquaristics
- Systems for the production of liquids, liquids in the food industry: juices, beer, winemaking, etc.
Available colours in shop: White, Blue, Red, Natural and Black.
JG REDUCTION FITTINGS 3/4 BSP x 1/4 BSP
Reducing coupling system for a variety of applications.
Product features:
- For the connection of Side By Side refrigerators.
- For the connection of water filters.
- For the installation of refrigerators with water dispenser and cube maker.
- In restaurants, cafés to connect pressure coffee machines.
- In vending machines that dispense cold or hot drinks.
- In reverse osmosis systems.
- In aquaristics.
- In systems for the production of liquids in the food industry: Juice, beer, winemaking, etc.
Product information:
- Operating temperature: min 0.6°C / max 65°C
- Operating pressure: min 120 psi, at 20 / max 230 psi
Straight 1/4″ (6.35 mm) PF quick-connect coupling
Cheap hoses and couplings on the market without pressure approval can lead to problems. By choosing tested and approved couplings, you will ensure safety and durability.
Product features:
- When you buy tested and approved fittings, you are assured of reliability.
- Safety clips and hose are not included.
Product information:
- Operating temperature: min 0.6°C / max 65°C
- Operating pressure: min 120 psi, at 20 / max 230 psi
- Dimensions: 1/4″ (6.35mm) inside diameter
- Model: PI0408S
Important information:
- Flooding of the kitchen.
- Damage to the appliance.
- Damage to the floor or other areas, which can lead to large financial losses.
Coupling, reduction systems are widely used on:
- Water dispensers
- Refrigerator connections with water filters
- Connection of water filters
- Refrigerator installation with water dispenser and ice-maker
- Restaurants, coffee shops for the connection of pressurised coffee machines
- Vending machines that dispense cold or hot drinks
- Reverse osmosis systems
- Aquaristics
- Systems for the production of liquids in the food industry: juices, beer, winemaking, etc.
John Guest 1/4″ PF (6.35mm) HOSE CONNECTOR
Every time you change a filter, you need to turn off the water valve. This is not always fully operational and cannot be turned off. It is therefore worth fitting a John Guest PPSV polypropylene valve on the hose which will make any filter change more efficient.
Product features:
- Streamlines every filter change due to the ease of turning off.
- Eliminates the risk of flooding the kitchen and damaging the appliance.
- Guaranteed quality and durability thanks to certified pressure hoses.
- Widely applicable to various appliances and industries.
Product information:
- Manufacturer: John Guest
- Model: Water Hose Valve 1/4″ PF (6.35mm) FAST CONNECTOR
- Filter type: Polypropylene PPSV
- Operating temperature : min 0.6°C / max 65°C
- Operating pressure: min 120 psi, at 20 / max 230 psi
Important information:
- Cheap hoses and fittings available on the market without pressure approval can cause flooding in the kitchen, damage to the appliance and damage to the floor or other rooms.
- The hoses available in our shop are certified and more resistant to breakage.
Fits models:
- water dispensers
- Side-by-side refrigerators
- water filters
- refrigerators with water dispensers and ice machines
- pressure coffee machines for restaurants and cafés
- vending machines
- reverse osmosis systems
- aquaristics
- liquid production systems in the food industry
